Features
Vortex Aquagym Max™ - Seating
1 / 6

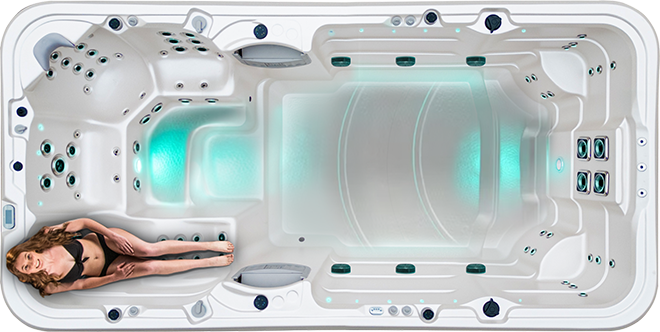

Double Hydrotherapy Loungers
Unwind in one of two full-body hydromassage loungers with ergonomic headrests and jets to soothe you from head to toe – ideal after spending time in the swim zone.
2 / 6

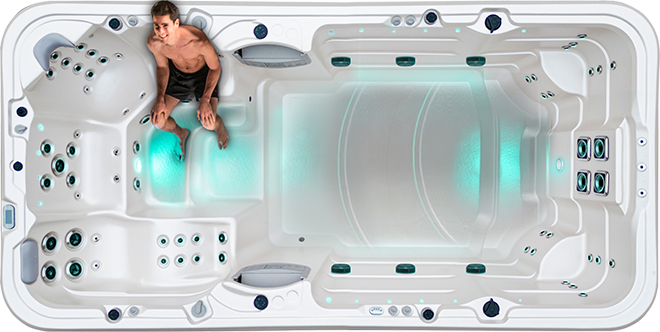

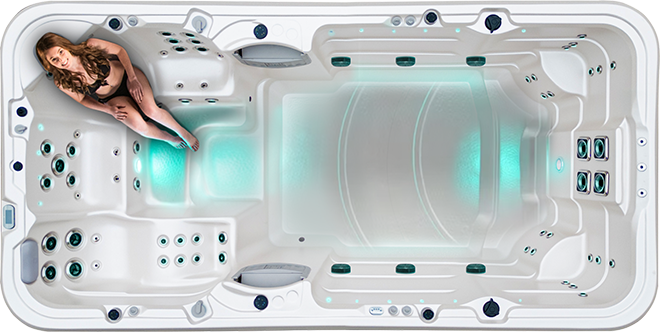

Comforting Neck & Shoulder Therapy Seat
Fitted with jets targeting the neck, shoulders, and lower back, this seat is perfect for soothing tired muscles and joints.
3 / 6
Back Massage Seat
Sit back and enjoy targeted jet placement in a seat designed to deliver a relieving back hydromassage.
4 / 6

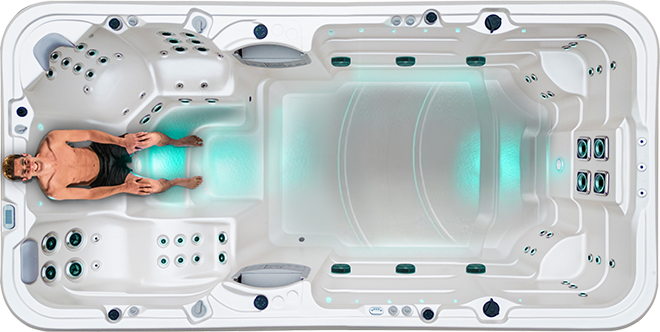

Elevated Cool Down Seat
With a shallower depth, this seat keeps your upper body elevated – ideal for cooling off or accommodating toddlers in a growing family.
5 / 6

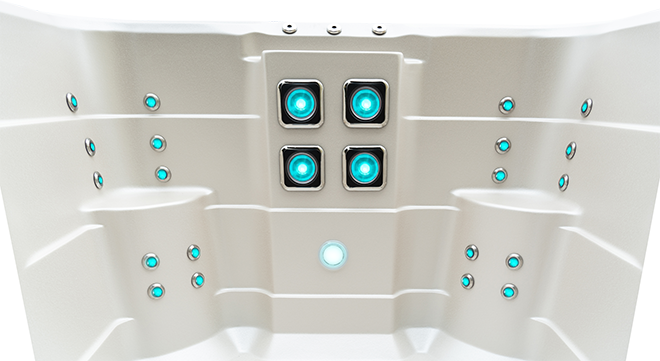

Standing Cool-Down Corners
After a session of swimming or play, you can take a break beside one of two standing cool-down seats. The Aquagym Max Extreme™ model is fitted with 10 hydromassage jets in each swim corner.
6 / 6

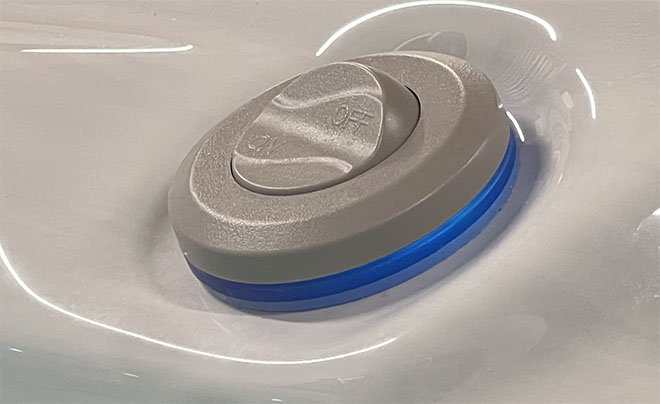

Swim Spa Seat Controls
Easily adjust jet flow and pressure with EzyGrip™ handles (One per seat) for personalised comfort, plus individual jet control for extra customisation.
Vortex Aquagym Max™ Features
1 / 6
Steel Swim Spa Frame
The Aquagym Max™ features a timber-free Permaframe™ made from hot-dipped galvanised steel – strong enough to support more than 6 tonnes of water and resistant to rust, rot, rodents and mildew.
2 / 6
Duraflex™ Swim Spa Plumbing
Duraflex™ PVC plumbing handles hot, chemically treated water, features a kink-resistant coil and sealed with Weld-On® glue for long-lasting performance.
3 / 6
Protective Swim Spa Base
The Aquagym Max™ features a ThermoLock™ ABS moulded base – tough like a car bumper, reinforced with fibreglass, and insulated to reduce heat loss from below.
4 / 6
Four-Layer Swim Spa Shell
The shell features USA-made Aristech Acrylic, three fibreglass layers and oven-curing for durability. Backed by a 10-year non pro rata warranty.
5 / 6
Hydroflow™ Jets
Hydroflow™ jets feature rust-resistant stainless steel faces, are fully recessed for comfort, and the bearingless, interchangeable designs prevent debris build-up and allow you to customise your hydrotherapy.
6 / 6
SpaNet™ Control System
The Aquagym Max™ features the premium Australian-made SpaNet™ system, including a SmartTouch™ touchscreen, x3 jet pumps, circulation pump, and push-button auxiliary keypad to control pumps, lighting, and the air blower.
Vortex Aquagym Max™ - Special Features
1 / 4
Purezone AOS™ Water Steriliser
Available on Vortex Swim Spas™ from 2023, this Advanced Oxidation System combines multi-stage filtration, ozone, and UV light to destroy bacteria and contaminants – reducing the amount of sanitiser required such as chlorine or bromine.
2 / 4

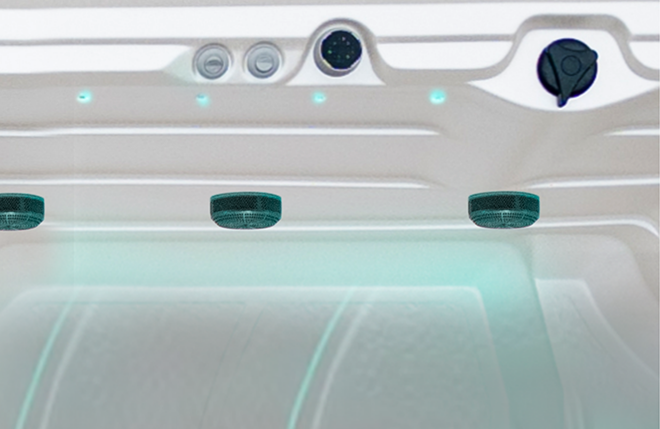

Swim Spa Air Blower
The air blower pushes air through tubes connected to the jets, allowing you to adjust airflow for a stronger, targeted massage. It also activates the automatic aromatherapy dispenser.
3 / 4
Aromatherapy Dispenser
The air blower releases scented aromatherapy into the water, with refill options such as sandalwood spice, lavender, evening musk, and citrus sorbet.
4 /4
Water Cascade
Enjoy a touch of luxury with the illuminated waterfall – soothing, eye-catching, and perfect for moments of peace while you enjoy your swim spa soak.
Vortex Aquagym Max™ - Lighting
1 / 5
Perimeter & Cabinet Lighting
The Hydroglow™ lighting package includes a striking touch of customisable multi-coloured LEDs along the waterline and outer cabinet – making your swim spa a standout feature.
2 / 5

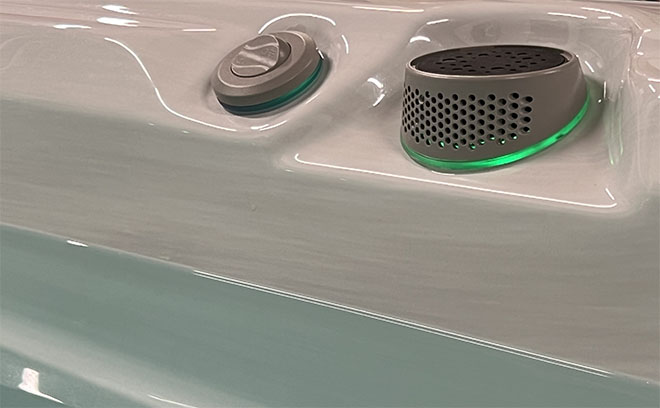

Backlit Dual-Function Drink Holders
These stylish drink holders double as speaker housings when paired with the optional Vortex™ WiFi Audio Kit – light will still shine from the front if speakers are installed.
3 / 5

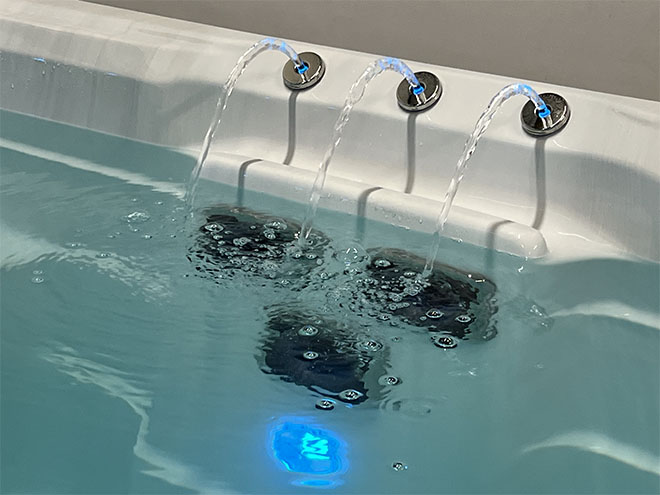

Backlit Laminar Jets
Enjoy smooth, illuminated streams of water flowing onto your shoulders. Oxygen is removed for a glass-like flow of water that you can light to suit your mood.
4 /5

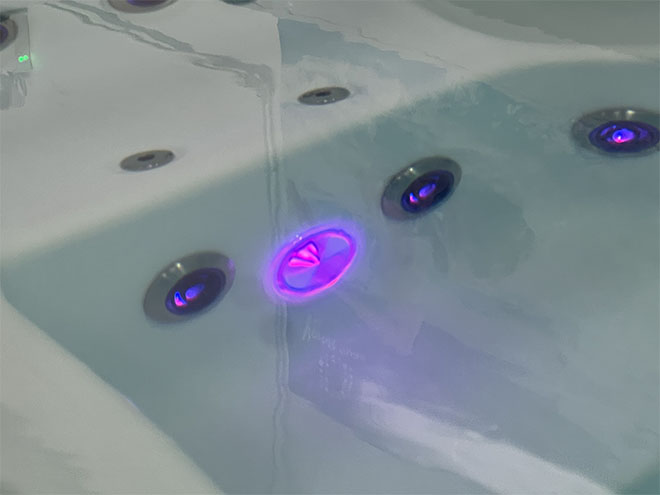

Underwater LED Flood Light
An LED flood light is located at each end of the swim spa to make it easier to navigate between the two areas, and to add a touch of illumination to the deepest parts of the swim spa.
5 /5
Spa Health Indicator
The Spa Health Indicator displays blue when the temperature is correct and red if there’s a fault, or a fluctuation greater than 5°C.
Vortex Aquagym Max™ - Cabinet & Shell Colours
Cabinet & Shell Colours
Gypsum, Sterling Silver, Pearl Shadow
Cabinet Colours – Coastal Grey, Chocolate, Natural
*Shell and cabinet colours may differ from render images
Vortex Aquagym Max™ - Compare models
1 / 5
What is the difference between the Vortex Aquagym Max™ models?
Choose from 4 models – Plunge, Pro, Pro+ and Extreme – each with different jet and pump setups. All are 1.3m deep, with an optional 1.5m XD upgrade. Ideal for taller users or if you require a larger swim zone.
2 / 5

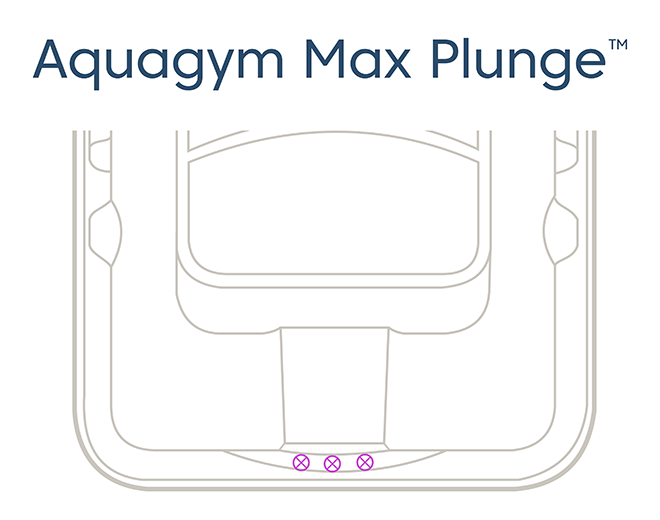

Vortex Aquagym Max Plunge
Perfect for families, fun, and low-impact exercise like aquasize. For swim training and resistance, consider the Pro, Pro+ or Extreme models.
Vortex Aquagym Max Plunge™ 1.3m £22,995.00 | Vortex Aquagym Max Plunge™ XD 1.5m £23,995.00
3 / 5

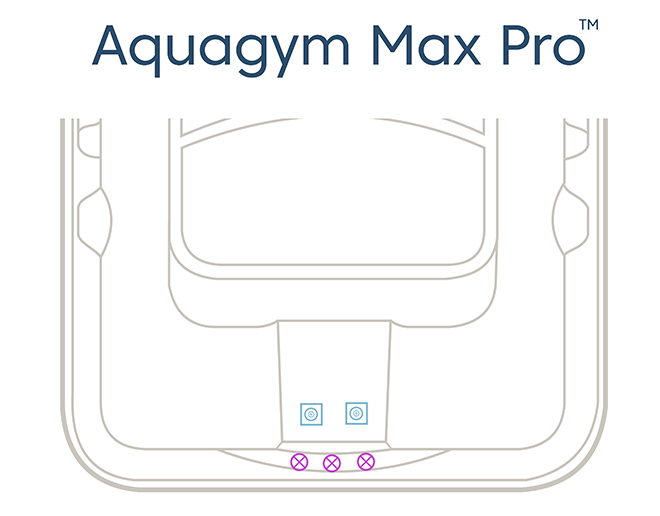

Vortex Aquagym Max Pro™
Adds two powerful swim jets for a steady current, making this model ideal for walking, jogging, or beginner to intermediate swimming. For stronger resistance, consider the Pro+ or Extreme.
Vortex Aquagym Max Pro™ 1.3m £24,795.00 | Vortex Aquagym Max Pro™ XD 1.5m £25,595.00
4 /5

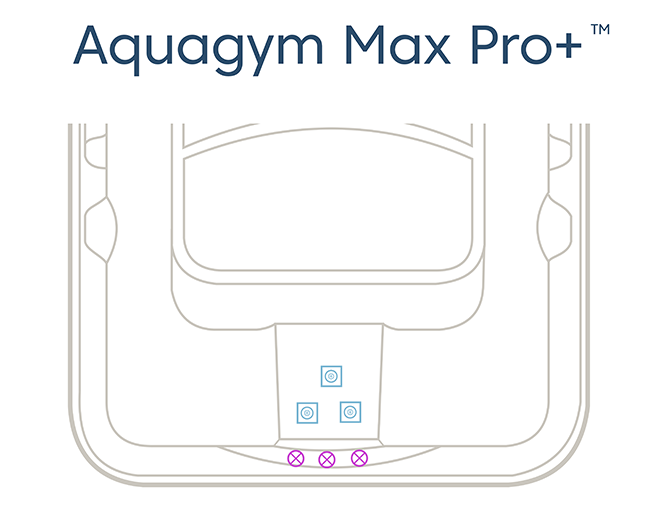

Vortex Aquagym Max Pro+™
Three powerful swim jets deliver a stronger current for water jogging, aqua fitness, and swim training. A versatile swim spa model for all levels – a great choice if you want a step up in swim resistance, without going to the Extreme model.
Vortex Aquagym Max Pro+ 1.3m £25,695.00 | Vortex Aquagym Max Pro+ XD 1.5m £26,595.00
5 /5

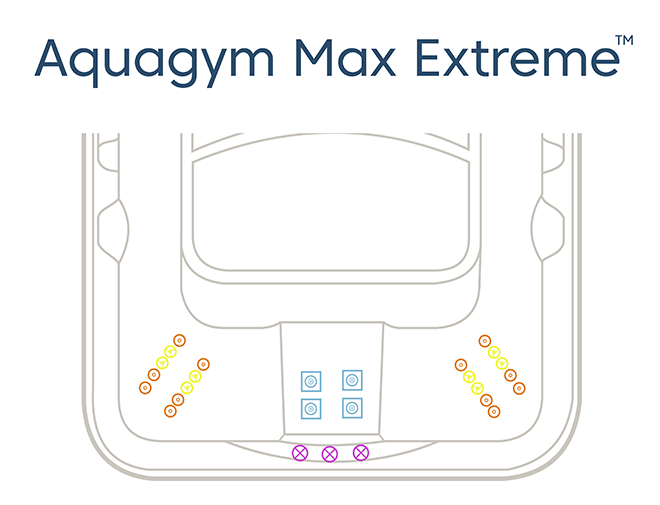

Vortex Aquagym Max Extreme™
Vortex Aquagym Max™ - Swim System
Wondering how key features of the Aquagym Max™ work together to create a premium swim experience? Watch this short video to learn about the versatile swim system on the Pro+ model.
Vortex Aquagym Max™ - Optional Features
1 / 4
Swim Spa Remote Controlling With WiFi
Remotely control and monitor your Vortex Swim Spa™ with the SpaNet™ SmartLink™ WiFi module and app. Peace of mind and convenience at your fingertips.
2 / 4
Stereo Sound & Streaming System
The SmartStream™ Audio & WiFi Kit delivers high-quality sound via Bluetooth®, WiFi, and HiFi, letting you stream music or podcasts from your device. Includes auxiliary input.
SmartStream™ RRP £695.00
3 / 4
SpaNet™ Airsource Heat Pump
The SpaNet™ Airsource Heat Pump is a plug-and-play 8.8kW system that connects to your SV controller, saving up to 75% on heating costs.
SpaNet™ 8.8kW Heat Pump RRP £2,195.00 excl fitting
4 / 4
ClearLift™
Features & Benefits of ClearLift™
ClearLift™ is a motorised, patent-pending swim spa cover system that makes lifting heavy covers effortless. Just turn the key and watch it fold and tuck neatly to one side. In this quick video, you’ll discover 5 key features and benefits that make ClearLift™ a game-changer for convenience, safety, and swim spa enjoyment. Say goodbye to heavy lifting and hello to easy swim spa access!
ClearLift™ RRP £6,495.00
Vortex Aquagym Max™ - Energy Efficient Features
1 / 4
EPS Foam Insulation
Expanded polystyrene (EPS) foam boards fitted to the swim spa cabinet reduce heat loss and improve energy efficiency. This helps you save on running costs.
2 / 4
Circulation Pump
The SpaNet™ circulation pump handles heating and filtration and is programmed to operate during off-peak energy periods. This reserves the larger, more power-intensive pump to power the jets – helping you save on running costs.
3 / 4
Programmable Heater
Dynamic Thermal Tuning is a thermal regulator that adapts to your swim spa usage patterns and heats during off-peak times to save energy. Also compatible with solar and off-grid homes.
4 / 4
Thermolock™ Swim Spa Cover
The Thermolock™ cover features high-density foam, a heat-shrink seal, and tapered edges to prevent heat loss and promote water runoff. This keeps your water warmer for longer.
Vortex Aquagym Max™ - Specifications
Compare the key features of each Aquagym Max™ model to find the perfection option for your fitness and lifestyle needs. For full specifications and additional details, click the download button for your Aquagym Max™ Technical Information Pack.
| Plunge | Pro | Pro Plus | Extreme | Plunge XD | Pro XD | Pro Plus XD | Extreme XD | |
|---|---|---|---|---|---|---|---|---|
| Dry weight | 900 kg | 958 kg | 929 kg | 1150 kg | 1050 kg | 1075 kg | 1085 kg | 1116 kg |
| Water Capacity | 6136 litres | 6136 litres | 6136 litres | 6136 litres | 7750 litres | 7750 litres | 7750 litres | 7750 litres |
| Filled Weight (Inc cover) | 7075 kg | 7133 kg | 7280 kg | 7325 kg | 8839 kg | 8924 kg | 8974 kg | 9004 kg |
| Programmable circulation pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Jet Pumps | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Variable speed air blower | 1 | 1 | 1 | 1 | Optional | 1 | 1 | 1 |
| Variable output heater | 5.25 kW | 5.25 kW | 5.25 kW | 5.25 kW | 3 kW | 5.25 kW | 5.25 kW | 5.25 kW |
| Electrical requirements | 32 amps | 32 amps | 32 amps | 40 amps | 32 amps | 32 amps | 32 amps | 40 amps |
Vortex Aquagym Max™ - Warranty
| Lifetime Warranty | Vortex Permaframe™ warranted against defects in workmanship and materials for lifetime of the swim spa. |
| 10 Year Non Pro Rata Warranty | The structure of the swim spa shell against defects in workmanship and materials that lead to water loss for a period of 10 years from the date of delivery. This is subject to limitations and conditions within the detailed warranty. |
| 5 Year Warranty | The swim spa shell acrylic surface is warranted against water loss through the acrylic surface. |
| 5 Year Warranty | The jets, heater and plumbing are warranted against defects in workmanship and materials. |
| 2 Year Warranty | Pumps and electrics warranted against defects in workmanship and materials. |
Please read this document for warranty coverage, exclusions and limitations.
